Steel Heavy Duty Crane Mats

Crane pads  /  Crane mats  /  Outrigger pads  /  Outrigger mats

Call us on 01623 653588 to discuss your crane mat requirements

Steel Crane Mat Hire                                Sizes Available Below...All Mats Supplied With Ethafoam                                         6.5m x 2.45m, 4m x 2.2m, 3m x 2.2m      and  2.46m x 2.45m                                Steel Road Plates also available                      2.5m x 1.25m x 25mm

Steel Crane Mat Sizes For Fabrication / Purchase;

Call Mike Allanson any time on 0758 1144466 to discuss your specific requirements and obtain latest prices and lead in time

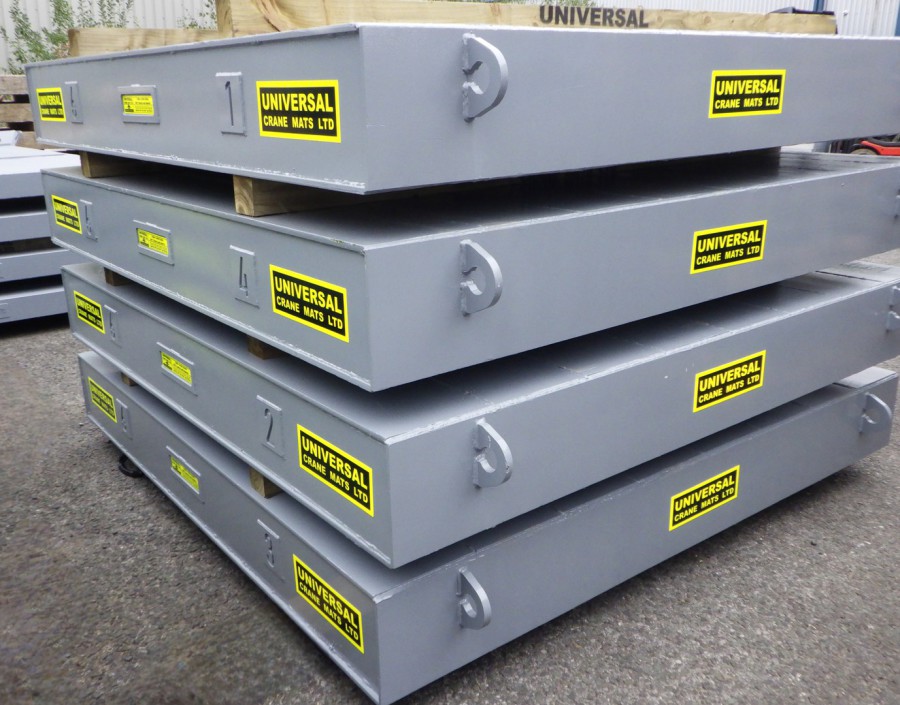

Fabricated Steel Mats Range
UCM - Fabricated Steel Mats.pdf
Adobe Acrobat document [690.0 KB]

Special order sizes to suit specific load criteria available on request...Design service available





 Mat Size Spread Area  Capacity  Price:
 1500 x 1500 x 120mm 2.25 m2 80 T £ POA
 2400 x 1200 x 120mm 2.88 m2 80 T £ POA
 2400 x 1400 x 120mm 3.36 m2 80 T £ POA
 2800 x 1200 x 120mm  3.36 m2 80 T £ POA
 4000 x 1740 x 200mm 6.96 m2 150 T £ POA
 6000 x 2000 x 200mm 12.00 m2 150 T £ POA
 3000 x 2200 x 220mm 6.60 m2 180 T £ POA
 4000 x 2200 x 220mm 8.80 m2 180 T £ POA
 3000 x 2500 x 280mm 7.50 m2 350 T £ POA
 3500 x 2500 x 280mm 8.75 m2 350 T £ POA
 5000 x 1500 x 350mm 7.50 m2 350 T £ POA
 6000 x 2000 x 380mm 12.00 m2 500 T £ POA
 7500 x 2200 x 250mm 16.50 m2 300 T £ POA
 6000 x 2200 x 320mm 13.20 m2 600 T £ POA

Universal Crane Mats' Heavy Duty Steel Crane Mats are supplied with comprehensive load spread capability calculations / justification;

The above standard designs are tailored to meet the specified imposed loads. If you have a requirement outside of the above range, call us now to discuss your needs. We can offer a task specific design service to ensure you get the mats you need.

Our heavy duty steel mats off complete peace of mind even in the most difficult of conditions, with up to 16.5 m2 of load spread area available to ensure lift stability.



By using our mats you are using a specialist load spread company with vast expeirience in the supply of outrigger mats.



Standard Mat Features;

Low weight / capacity ratio

4 lifting eyes per mat

Stacking guide plates

Comprehensive load spread capability calculations / justification;
Company branding / RAL colour match
